Smart Rodent Monitoring System
JD-SH1 / JD-SH2 · AI rodent identification · Solar power · GPRS & email alert
🌱 Smart Rodent Monitoring & Early Warning — Solar-powered IoT device with HD infrared camera, AI rodent identification and remote GPRS/email alerts. Physical pest control — no chemicals.

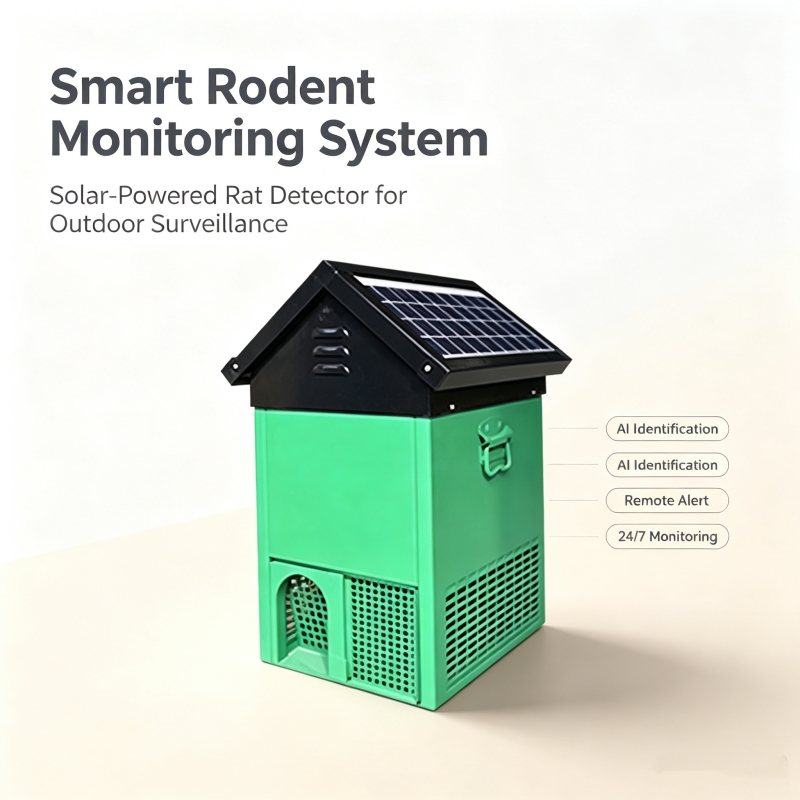

The Smart Rodent Monitoring System is an IoT solar-powered device designed to automatically detect, capture images, identify rodent species and population density, and send early warnings of rat plagues. It works unattended in the field for long-term, high-accuracy rodent surveillance — widely applied in agriculture, forestry, warehouses, gardens, research institutes and universities.
- Solar Self-sufficient Power: Built-in solar panel + lithium battery, supports long standby, works all day and night without frequent power maintenance
- One-way Capture Channel: Unidirectional tunnel design — once rodents enter, they cannot escape. Compatible with various standard lures
- HD Infrared Camera: Customizable pixel range 2MP–20MP. Captures rodent photos in real time, identifies species, quantity, weight and activity patterns
- Remote Alarm & Data Transmission: GPRS image alert & email notification. 7-mode full network communication (2G/3G/4G expandable)
- Smart Bait Dispensing: Cyclic automatic lure release, controllable timing & dosage, auto reset function
- AI Rodent Analysis & Forecasting: AI algorithm analyzes rodent density, generates monitoring reports and issues plague early warning
- IP67 Protection: Working temperature -15℃ ~ 60℃. Stable in harsh outdoor environments
- OEM/ODM Ready: Custom branding, packaging and specification adjustments available
✅ ideal for
Product Overview
The Smart Rodent Monitoring System adopts physical-only pest control. It is a solar-powered IoT device that automatically detects, captures images, identifies rodent species and population density, and sends early warnings of rat plagues. It works unattended in the field for long-term, high-accuracy rodent surveillance, widely applied in agriculture, forestry, warehouses, gardens, research institutes and universities.

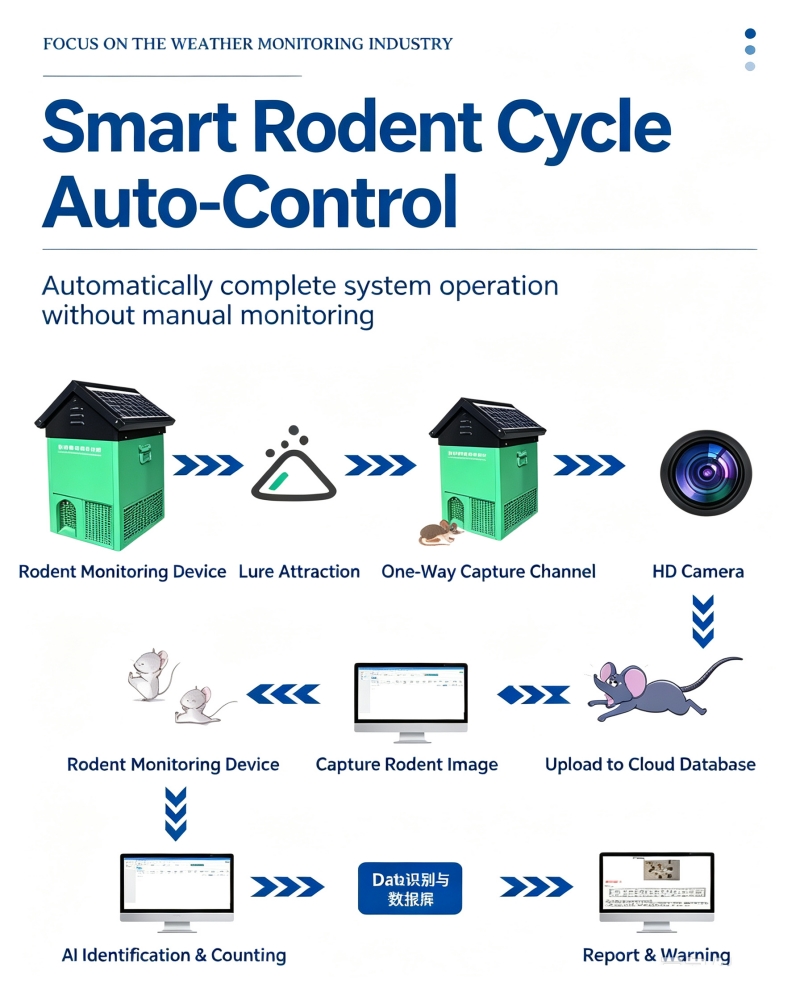

Working Principle: Lures attract rodents into the one-way capture channel → infrared & HD camera triggers photo capture → images uploaded to cloud database → AI system identifies rodent types and counts → generates reports and automatically sends warning alerts.
Model Overview
| Model | Camera Pixel | Bait Release | Communication |
|---|---|---|---|
| JD-SH1 | ≥2MP | Standard | GPRS image alarm, Email alarm |
| JD-SH2 | 2MP~20MP (customizable) | Smart cyclic dispensing, time & quantity controllable, auto reset | 7-mode full network, 2G/3G/4G expandable |
Key Features

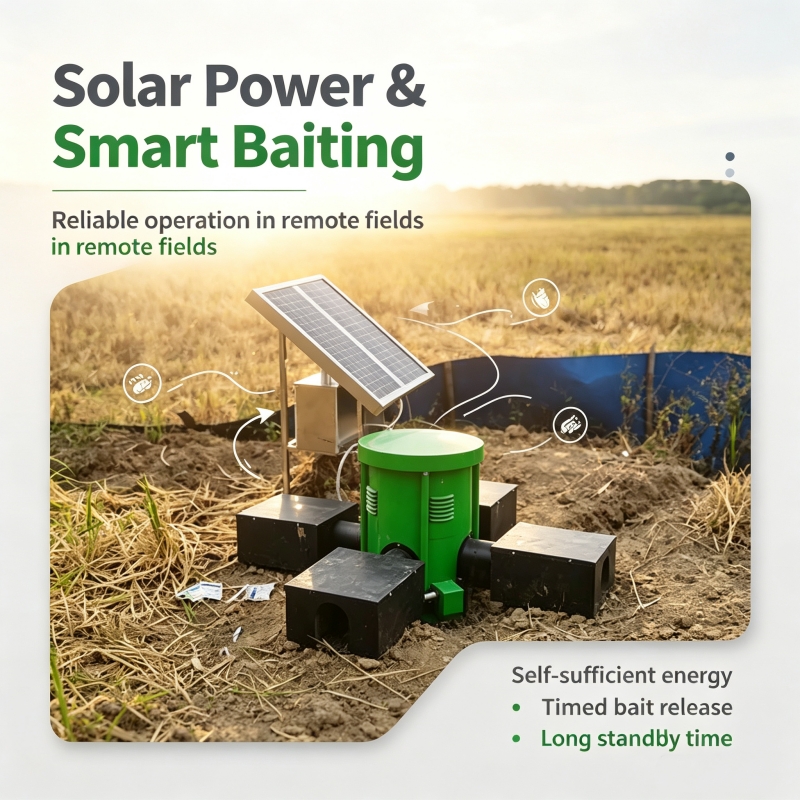

☀️ Solar Self-sufficient Power
Built-in solar panel + lithium battery, long standby, works day and night.

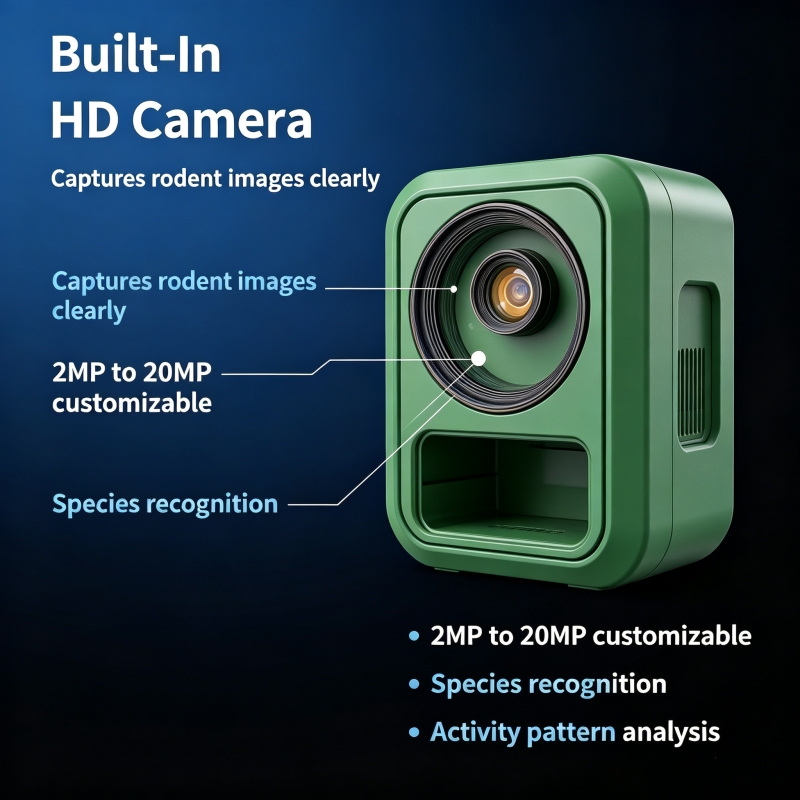

📸 HD Infrared Camera
2MP–20MP customizable. Identifies species, quantity, weight and activity patterns.
☁️ Remote Alarm & Data
GPRS image alert + email notification. 7-mode full network, 2G/3G/4G expandable.
🧠 AI Rodent Analysis
Analyzes rodent density, generates reports and issues plague early warnings.
🔄 Smart Bait Dispensing
Cyclic automatic lure release, controllable timing & dosage, auto reset.
🏭 OEM/ODM Support
Custom branding, packaging and specification adjustments available.

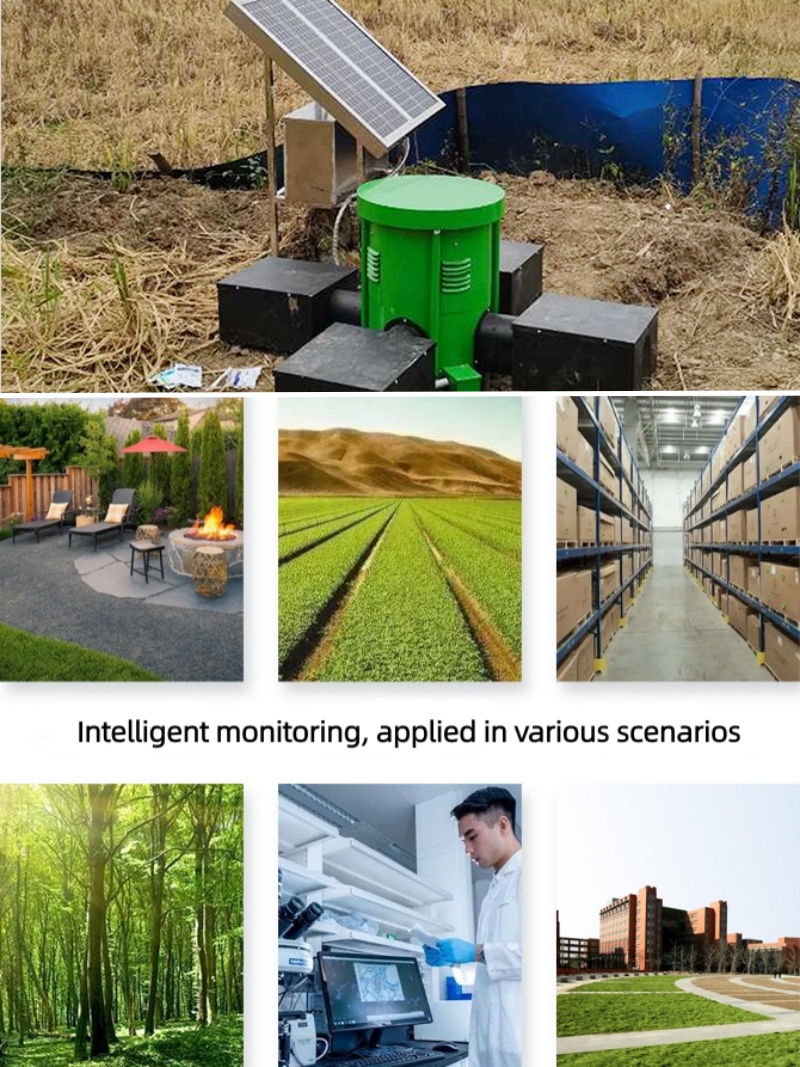

Who Uses This System?
- Agriculture & Farming — large-scale farmland rodent monitoring
- Forestry — rodent outbreak prevention and control
- Warehouse Storage — food safety and storage protection
- Garden & Horticulture — outdoor rodent surveillance
- Research Institutes & Universities — scientific data collection and analysis
| Model Series | JD-SH1 / JD-SH2 |
| Alarm Mode | GPRS image alarm · Email alarm |
| Camera Pixel | JD-SH1: ≥2MP · JD-SH2: 2MP–20MP (customizable) |
| Image Resolution | ≥1920×1080 |
| Image Format | JPEG |
| SD Card Storage | ≥2GB |
| Standby Power | ≤0.8W |
| Backup Battery | DC8.4V / 800mAh Li-ion |
| Main Battery | DC11.1V / 10AH |
| Standby Time | ≥168 hours |
| Bait Release | Smart cyclic dispensing, time & quantity controllable, auto reset |
| Detection | Infrared detection · Image detection · Weighing detection (cyclic version) |
| Communication | 7-mode full network · 2G/3G/4G expandable |
| Protection Grade | IP67 |
| Working Voltage / Current | 12V / 5A |
| Working Temp | -15℃ ~ 60℃ |
| Data Interface | USB 2.0 / USB 3.0 |
Packaging Options
- Standard carton box: Secure packaging for sea/air freight. Accessories included.
- Custom packaging and branding available for OEM/ODM partners.
Shipping & Logistics
- Lead time: 10–20 days (depending on order quantity)
- Shipping options: Sea freight, air freight, DHL/FedEx
- Payment terms: T/T, L/C, PayPal
- MOQ: Flexible — sample orders available for field testing.
