CQ Series Insect Pest Monitoring System
6 models · AI pest identification · 220VAC / solar power
🌱 Smart Pest Monitoring & Forecasting — AI-powered insect identification, cloud-based early warning, and automatic data reporting. Physical pest control — no chemicals.
The CQ Series is an intelligent pest monitoring system that integrates advanced optical, electrical and digital control technologies. It automatically attracts, captures and identifies field pests — supporting standalone local operation or cloud-connected remote monitoring via 4G or Ethernet.
- AI Pest Identification: High-resolution camera + neural network for species & count recognition
- Far-Infrared Pest Disposal: Double-layer processing chamber — clean, physical, chemical-free
- Cloud Data & Early Warning: Real-time pest reports, forecasting and alerts via mobile/PC

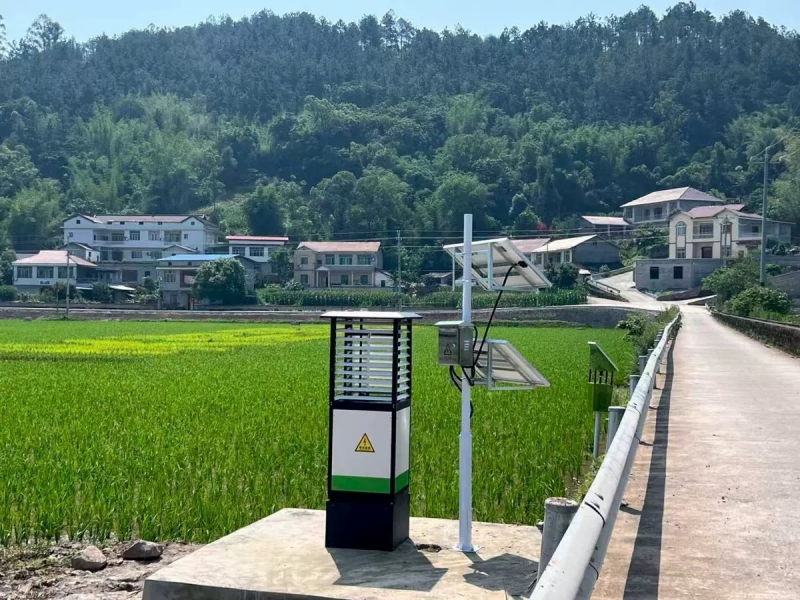

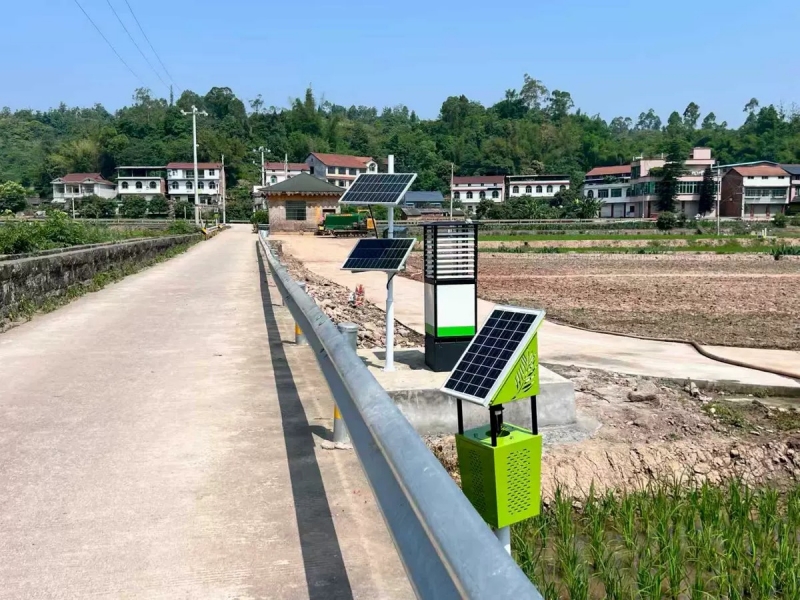

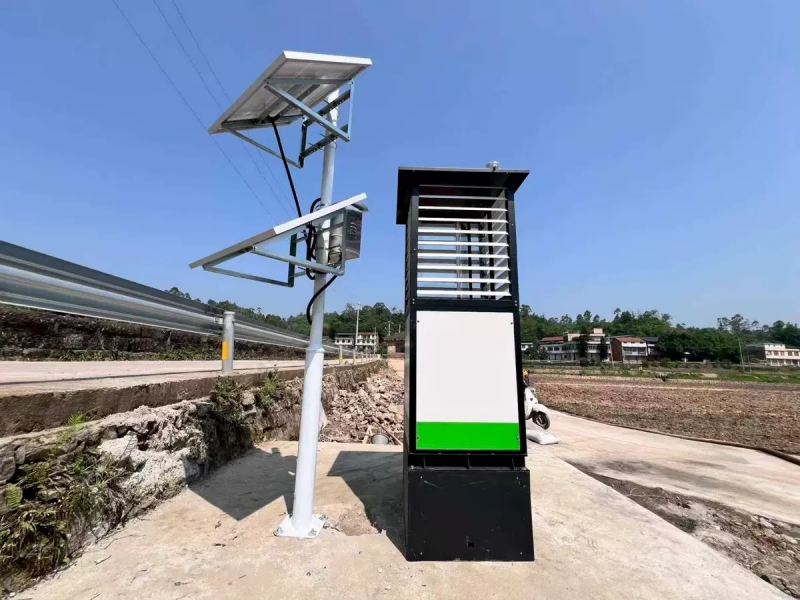

- Flexible Power Options: 220VAC standard · Solar power optional for off-grid sites
- 6 Models Available: From entry-level MCU to research-grade 20MP Android systems with 8-position auto-rotate collector
- OEM/ODM Ready: Custom branding, packaging, and specification adjustments available
✅ ideal for
Product Overview
This intelligent pest monitoring device adopts physical‑only pest control. It supports 220VAC mains power as standard, with solar‑power option for off‑grid field sites. Two working modes are available: standalone local operation or cloud‑connected remote monitoring via 4G/Ethernet. OEM customization is supported.

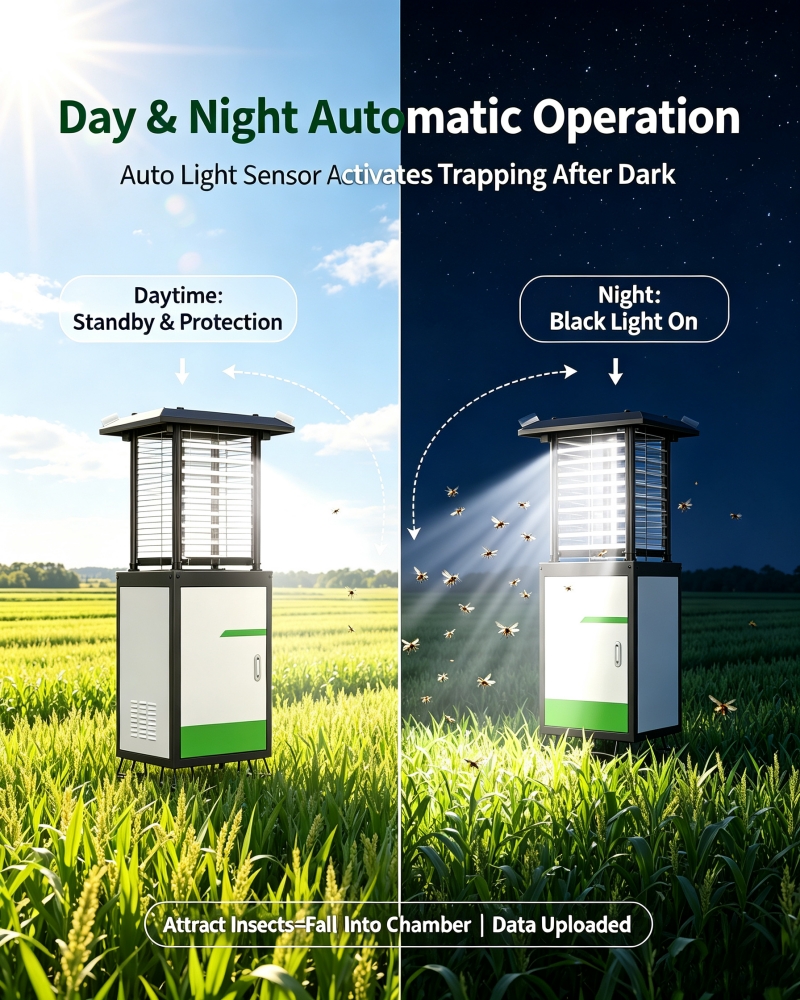

Working Principle: Light‑controlled auto on/off → Black‑light insect attraction → Impact collection → Far‑infrared insect disposal → AI‑powered pest identification & counting → Cloud data upload, early‑warning and pest report generation.
Model Overview
| Model | Product Name | Positioning | Key Features |
|---|---|---|---|

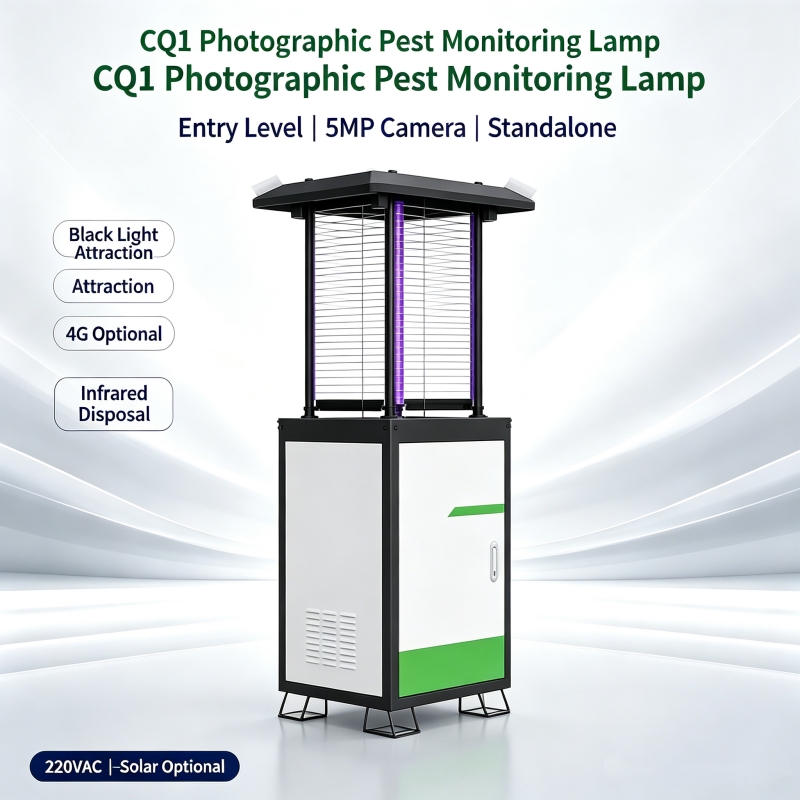

| CQ1 | Photographic Pest Monitoring Lamp | Entry‑level | MCU system, 5MP camera |
| CQ2 | Pest Monitoring Lamp | Basic‑enhanced | MCU system, 5MP camera |

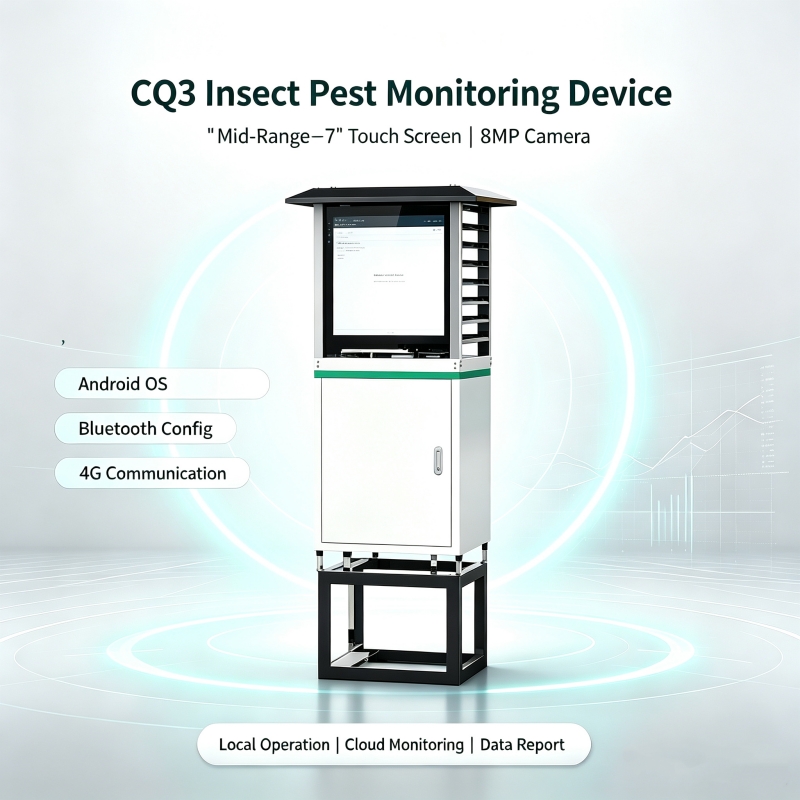

| CQ3 | Insect Pest Monitoring Device | Mid‑range | Android OS, 7″ touch screen, 8MP camera |

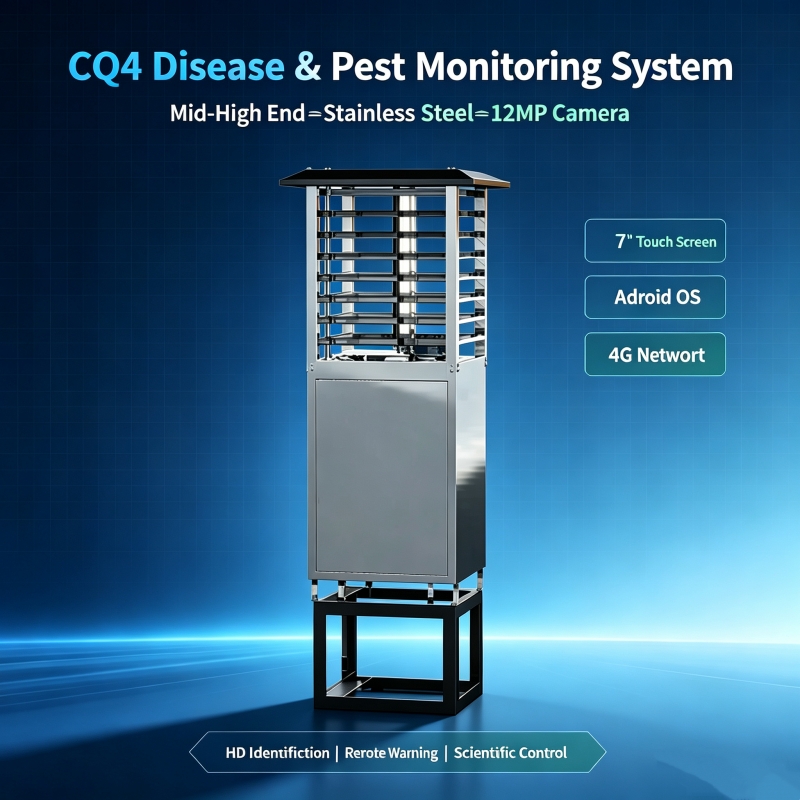

| CQ4 | Disease & Pest Monitoring System | Mid‑high‑end | Stainless steel, Android, 7″ touch, 12MP camera |
| CQ5 | Insect Pest Monitoring System | High‑end | Android, 10.1″ touch, 12MP, 8‑pos auto‑rotate collector |

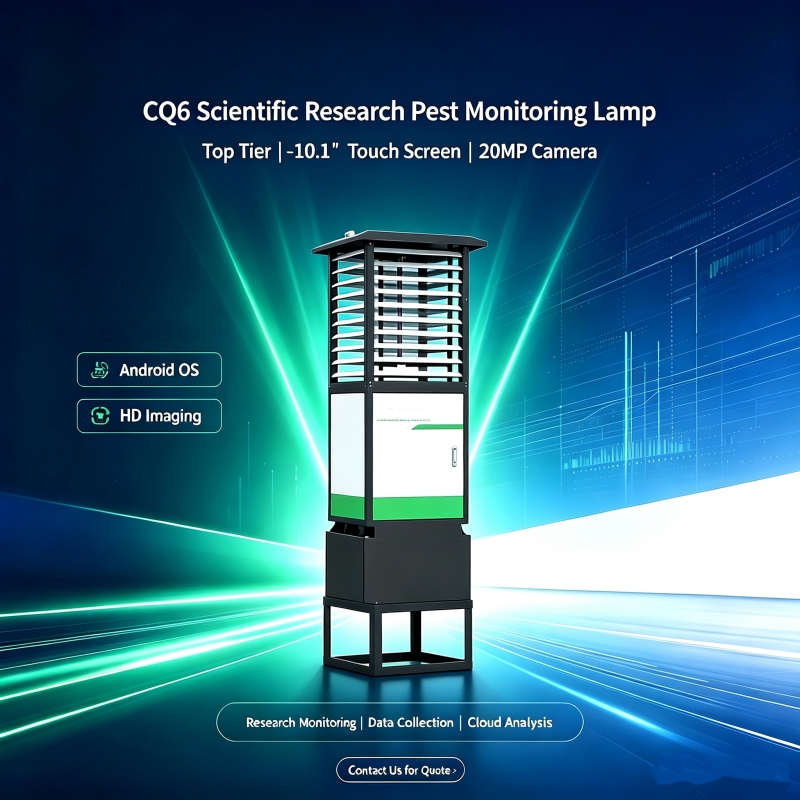

| CQ6 | Scientific‑Research Pest Monitoring Lamp | Top‑tier / Research | Android, 10.1″ touch, 20MP, 8‑pos auto‑rotate collector |
Key Features
🔌 220V AC / Solar Power
Standard mains power or solar panel for off-grid deployment.
📸 AI Pest Recognition
Neural network identifies species, count and developmental stage.
☁️ Cloud & Early Warning
Real-time data upload, forecasting, and alerts via mobile/PC.
🌿 100% Chemical-Free
Physical insect attraction + far-infrared disposal — no pesticides.
🔄 8-Position Auto-Rotate
CQ5/CQ6 models — automatic sample rotation for continuous monitoring.
🏭 OEM/ODM Support
Custom colors, logos, packaging and spec adjustments available.
Who Uses This System?
- Agriculture & Farming — large-scale crop pest monitoring
- Orchards & Vineyards — fruit fly and pest detection
- Forestry — pest outbreak prevention and control
- Research Institutions — scientific data collection and analysis
- Quarantine & Pest Control Agencies — inspection and early warning
| Model Series | CQ1 – CQ6 (6 models available) |
| Power Supply | 220VAC standard · Solar optional |
| Power Consumption | ≤200W full‑load · ≤25W standby |
| Working Environment | 0‑70℃ · RH 0‑85% (no condensation) |
| Insect Attraction | Optical black‑light · Chemical lure optional |
| Pest Disposal | Double‑layer far‑infrared chamber |
| Communication | 4G cellular · RJ45 Ethernet optional |
| Operation Modes | Standalone · Cloud‑connected |
| Configuration | Bluetooth contact‑free debugging |
Packaging Options
- Standard carton box: Secure packaging for sea/air freight. Accessories included.
- Custom packaging and branding available for OEM/ODM partners.
Shipping & Logistics
- Lead time: 10–20 days (depending on order quantity)
- Shipping options: Sea freight, air freight, DHL/FedEx
- Payment terms: T/T, L/C, PayPal
- MOQ: Flexible — sample orders available for field testing.
